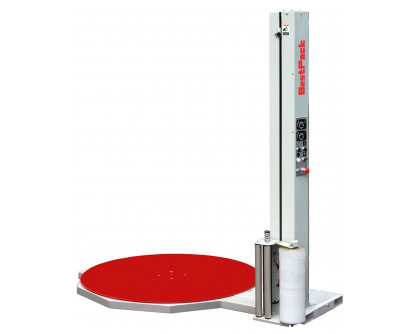

SEMI - AUTOMATIC STRETCH WRAPPERS LOW PROFILE SERIES

MODEL : SW803 SERIES

OVERVIEWS

◊ The wide range of BestPack's automatic stretch wrapping systems offer you high performance,
durability, economy, and maximum versatility to meet you packaging application needs.

◊ These stretch wrappers offer a convenient and cost-effective way to optimize your stretch wrapping applications.


TURNTABLE/ FRAME FEATURES

◊ 58" Diameter, 3/8" Laser-Cut Steel Plate

◊ 4000lbs. Load Capacity

◊ ANSI# 50 Chain Drive w / Adjust-Tensioning

◊ Electronic Soft Start/Stop

◊  1-12 RPM Variable Speed

◊ 1/2 HP, DC Controlled Drive Motor

◊ Low Profile

◊ Home Proximity Position Sensor

◊ No Maintanance, No need to Lube Drive System

◊ Sealed Double Bearing (No Lubrication needed)12" Flywheel Drive

◊ 8 point Heavy Duty Phenolic Lined Dual Bearing Support System

◊ Built-in Forklift Channels

◊ Tower with Tilt-Down Hinge for Easy Shipping


CARRIAGE FEATURES

◊ 20" Film Capacity

◊ 1/3 HP, DC Controlled Drive Motor

◊ Clutch Control Film Stretch up to 120%

◊ Clutch Control Film Holder

◊ Automatic Pallet Height Sensor with Adjustable Sensor Position

◊ Phenolic Carriage Guide

◊ Safety Stop Switch on Carriage


CONTROL FEATURES

◊ On/Off with Power Indicator Light

◊ Home Position Button

◊ On the Fly Carriage Pause Switch

◊ On the Fly Variable Turntable Speed Control

◊ On the Fly Variable Carriage Speed Control

◊ Manual Carriage Up/Down Switch

◊ Turntable Jog Switch

◊ Single or Double Wrap Switch

◊ Omron PLC with Communication Port

◊ Top and Bottom Wrap Repetition Counter (0-3)

◊ Carriage Travel Stop Switch (Up and Down)

MACHINE & CONTROL SPECIFICATIONS

Production Speed : 35-45 Load /Hour Based on Load Configuration

Load Size : 53" x53" x 82"

Maximum Load Weight : 4,000lbs

Power : 110V, 60Hz, 20 Amps

Estimate Machine Weight : 2000 lbs.











* This page last updated : 24/07/2013   ( 04:22:48 PM ).
* The information herein is subject to change without notice.
