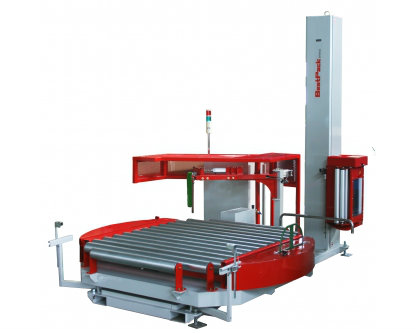

Automatic Stretch Wrapper (SW801-FA)

  • MODEL: SW801-FA

  • AUTOMATIC STRETCH WRAPPERS SERIES

    Overviews

    The wide range of BestPack's automatic stretch wrapping systems offer you high performance, durability, economy, and maximum versatility to meet you packaging application needs.

    These stretch wrappers offer a convenient and cost-effective way to automize your stretch wrapping applications.

    Control Features:

    • Allen Bradley PLC MicroLogix 1200 with Proface 1000 panel view touch screen
    • 24V control system
    • Current overload protection
    • ON stand Nema 4 rated control cabinet
    • Autoheight sensing photoeye
    • Power on/off lockable switch and indicator light
    • Start/ Stop and Reset button
    • Manual function for turntable forward
    • Manual carriage up/ down
    • All conveyor forward/ (reverse optional)
    • AC motors with Allen Bradley variable frequency drive
    • Single carriage speed
    • Separate top and bottom wrap on screen selection (0-9)
    • Film force to load control
    • Manual film clamp jog

    Film Delivery Features:

    • 20” Powered Pre-Stretch carriage
    • 1/2 HP AC motor with variable speed drive
    • 300% pre-strech ratio (preset to customer spec, Standard 220%)
    • Film tension control with analog sensor
    • Safety door with Lexan roller cover
    • Automatic film clamping
    • Pulsed controlled cutter
    • Brush-on film tail treatment

    Film Carriage Features:

    • 1/2 HP motor with Allen Bradley variable speed drive
    • ANSI #40 chain carriage lifts
    • With UHMW carriage glides

    Turntable Features:

    • Max. 15RPM variable speed
    • 1 HP AC motor with variable speed drive
    • Electronic soft start/stop
    • Turntable alignment control with proximity sensor
    • 2-1/2” dia. rollers on 3-3/4” centers
    • All full length rollers driven
    • 52” between frame rails
    • 1/2 HP roller motor with contactor
    • #40 ANSI chain drive rollers

    Optional Conveyor Features:

    • 5’ in/5' out powered contoured conveyor with 18” height
    • 2-1/2” dia. rollers on 3-3/4” centers
    • All full length rollers driven
    • 52” between frame rails
    • 1/2 HP motor with contactor
    • All forward reverse manual mode
    • Heavy duty structural steel design
    • Fix speed 30 FPM conveyor speed
    Machine & Carton Specifications
    • Production Speed : 45 loads /hour based on load config. and machine options
    • Load Size : Min. 36"W x 36"L x 10"H Max. 50"W x 50"L x 80"H
    • Maximum Load Weight : 4000 lbs
    • Power: 460V, 3 Phase, 60Hz, 20 Amps
    • Estimate Machine Weight: 7250 lbs (incld 5' infeed and 5' outfeed conveyor)
    • Air Requirement: 3CFM at 80 PSI
